Transducer Calibrator / Tester

Monitoring Accessories

Altec AIR offers a variety of Cross-Connect Blocks for connecting multiple points of measurement (transducers, binary inputs) to your Monitoring System.

Standard Features:

100 Pair Block - P011847

100 Pair Cross-Connect Block

P011847

Connect up to 100 points of measurement (transducers, binary inputs). Connect to your Monitoring System using up to four (4) of the available Amphenol Cable ports carrying 25 points each.

50 Pair Block - P011847-50

50 Pair Cross-Connect Block

P011847-50

Connect up to 50 points of measurement (transducers, binary inputs). Connect to your Monitoring System using up to two (2) of the available Amphenol Cable ports carrying 25 points each.

25 Pair Block - P011847-25

25 Pair Cross-Connect Block

P011847-25

Connect up to 25 points of measurement (transducers, binary inputs). Connect to your Monitoring System using the single Amphenol Cable port.

25 Pair Block (Square) - P011847-25S

25 Pair Square Cross-Connect Block

P011847-25S

Connect up to 25 points of measurement (transducers, binary inputs). Connect to your Monitoring System using the single Amphenol Cable port. Cover included.

Standard Features:

5 Bank Manifold - PVTMH5P

5 Bank Pressure Transducer Manifold

PVTMH5P

  • Accommodates up to 5 Manifold Install type Pressure Transducers
  • Includes 6 pair wire harness

10 Bank Manifold - PVTMH10P

10 Bank Pressure Transducer Manifold

PVTMH10P

  • Accommodates up to 10 Manifold Install type Pressure Transducers
  • Includes 25 pair wire harness
Standard Features:

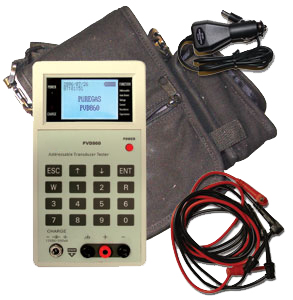

Transducer Calibrator / Tester - PVD860D

Transducer Calibrator / Tester

PVD860D

  • 128x64 LCD display, 4x4 keyboard
  • Test transducers before and after installation
  • Recalibrate transducers
  • Transducer setup and test
  • Measure cable resistance, voltage and capacitance
  • Measure transducer operational current, quiescent current, maximum reading current and minimum reading current
  • Discover/record addresses of transducers on line (multi-mode search)
  • Password protection
  • Extensive diagnostic facilities
  • Real time clock to display year, month and day
  • Auto power-down

* Required for field installation of Altec AIR Solid State Transducers.
