Field Manifolds

Manifold Assembly - PPEC723

This manifold is designed to allow for the connection of plastic tubing from up to 5 Cables to an Air Pipe in the field.

PPEC723

• 1/4" FPT Inlet
• (5) Outlet Ports to connect to 3/8" O.D. Tubing
• Individual shut off valves for each Outlet Port
• Individual testing ports for the Pressure of each Outlet
• Additional testing valve for Manifold Pressure
• Brass/Tin or Cadmium plated

Hi-Valve Connecting Manifolds

This manifold is designed to provide a convenient pressure measurement point for up to 5 Cables / Air Pipes in the field.

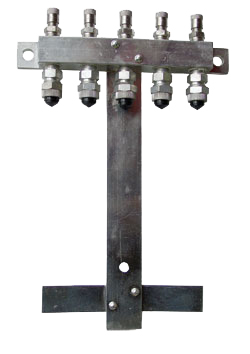

PPEC720A

• Available in Single or 5 Connection models
• Ports connect to 3/8" O.D. Tubing
• Individual Pressure testing ports
• Brass/Tin or Cadmium plated
