Mist Eliminators

Compressed Air & Gas Filtration

Request a Quote Download Spec Sheet

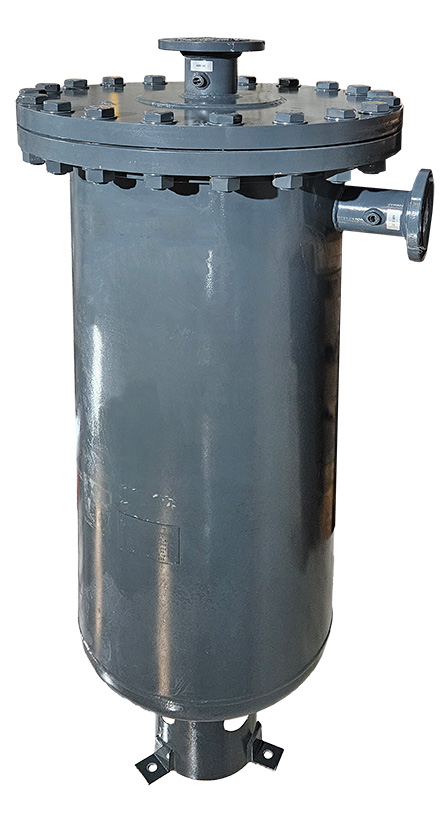

Altec AIR’s Mist Eliminators remove oil and water from compressed air and gas, utilizing a combination of low operating velocities, deep beds, and Brownian diffusion as the predominant collecting mechanism to achieve high efficiency with very long operating life and low pressure drops.

Standard Features:
  • Up to 99.95+% submicron particle mist removal in typical compressed air service
  • Efficiency remains above 99% at significantly turned down flow rates
  • Pressure drop is typically less than 0.5 PSIG, providing appreciable operating power savings
  • Can tolerate high inlet loadings caused by temporary upsets or surges
  • Extended desiccant life
Specifications & Dimensions:
Capacity
(SCFM)		 Inlet/Outlet Port Size
(in)		 Drain Port Size
(in)		 Vessel Width (H1)
(in)		 Vessel Height (H2)
(ft in)		 Leg Height (H2)
(in)
AME-0085 85 2" 1" 14" 1' 1" 18"
AME-0180 180 1' 5"
AME-0435 435 2.5" 2' 5"
AME-0785 785
AME-1015 1015 4" 16" 3' 11"
AME-1305 1305 18"
AME-1450 1450 24" 3' 1"
AME-2175 2175 4' 2"
AME-2900 2900 5' 3"
AME-4350 4350 6" 1.5" 9' 9" 30"
AME-6160 6160 8" 2" 30" 9' 11"
AME-7250 7250 11' 11"
AME-8700 8700 13' 11"

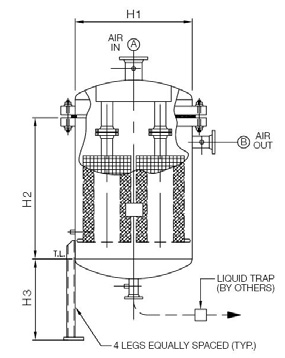

Mist Elminiator Dimensions
