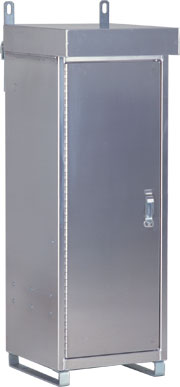

P4200PM / P5000PM

P4200PM / P5000PM
Air Dryers

Remote Air - Up to 5000 SCFD

Request a Quote Download Spec Sheet
Standard Features:
  • Air Delivery up to 4,200 SCFD / 5,000 SCFD
  • Accurate Humidity Sensing within ±0.1% RH
  • Solid State Microprocessor-Based Circuitry - Eliminates Costly Maintenance
  • Removable Compressor Tray, Front Panel, & Heatless Dryer Assemblies for Easy Maintenance
  • Oil-less Type Compressor
  • All-Weather Operation (-40° to 120° F) - Thermostatically Regulated Internal Climate Controls
Accessories:
  • 6-Month Maintenance Kit -
    • P4200PM (P012907)
    • P5000PM (P012879)
  • Compressor Maintenance Kit -
    • P4200PM (P010491)
    • P5000PM (P3865)
  • Heatless Dryer Maintenance Kit (P200499S)
General Specifications:
P4200PM P5000PM
Output Capacity Normal: 2,600 SCFD (74 SCMD)
Continuous
Maximum: 4,200 SCFD (119 SCMD)
Emergency		 Normal: 3,000 SCFD (85 SCMD)
Continuous
Maximum: 5,000 SCFD (142 SCMD)
Emergency
Power Requirements
(30 Amp Service Recommended)		 110 - 125 VAC, 1 Phase, 50/60 Hz
Running Amps 12 Amps 16 Amps
Outlet Pressure Range 0 - 20 PSIG (0 - 138 KPa)
Outlet Air Relative Humidity Less than 2% RH
Compressor Type Two-Cylinder, Rocker, 3/4 HP, Oil-less Two-Cylinder, Piston, 1 HP, Oil-less
Drying Method Heatless Desiccant
Environment Operatating Temperature Range -40° - 120°F (-40° - 48°C) Ambient
Noise Level 48 dBA at 3’ (0.9 m) 68 dBA at 10’ (3 m)
Alarms Standard Alarms - Complete measurements of all critical points
Outlet Connections 1/2" NPT Female
Dimensions 23.25" D x 17.5" W x 47.75" H (59 cm D x 44.5 cm W x 121.3 cm H)
Weight 212 lbs (96 kgs) 255 lbs (116 kgs)
