VSA Series Desiccant
Air Dryers
2.8 to 12.0 SCFM
The VSA Series Heatless Desiccant Air Dryers are one of our longest running, mature product lines. Its proven design continues to provide solid performance and reliability at point-of-use applications.
- 4 Models Available to Match Your Application Requirements and Minimize Energy Loss
- Solid-State Timer with Built-In Memory Ensures Reliable Drying Cycles
- Fixed Orifice Purge Control for Consistent Ultra-Dry Outlet Conditions
- Dual Inlet & Outlet Port Configurations Allows for Custom, Easy Installation
- -40°F/C Standard Outlet Dew Point
(ISO 8573.1 Class 2) - Available with ETL Listing
| Standard Features: |
|---|
|
| Optional Features: | |
|---|---|
|
|
| General Specifications: | ||||||
|---|---|---|---|---|---|---|
| VSA1 | VSA2 | VSA3 | VSA4 | |||
| INLET Flow: (SCFM @ 100 PSIG) |
2.8 | 5.8 | 8.0 | 12.0 | ||
| PURGE Flow (SCFM @ 100 PSIG) |
0.8 | 1.7 | 2.5 | 3.2 | ||
| OUTLET Flow (SCFM @ 100 PSIG) |
2.0 | 4.1 | 5.5 | 8.8 | ||
| Inlet / Outlet Ports (NPT) |
1/4" | |||||
| Dimensions: | ||||
|---|---|---|---|---|
| Weight (lbs) |
Height (in) |
Width (in) |
Depth (in) |
|
| VSA1 | 7.0 | 10.1 | 8.0 | 4.8 |
| VSA2 | 8.0 | 13.1 | ||
| VSA3 | 9.0 | 16.1 | ||
| VSA4 | 14.0 | 24.1 | ||
| Multiplier Table (For INLET Pressures other than 100 PSIG): | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Maximum Inlet Flow (-40° F/C PDP) = INLET Flow (above) x INLET Flow Factor (A) @ Actual Pressure (below) Purge Flow = PURGE Flow (above) x PURGE Flow Factor (B) @ Actual Pressure (below) Rated OUTLET Flow = Calculated Maximum Inlet Flow - Calculated Purge Flow |
|||||||||||
| Actual Pressure (PSIG) | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
| INLET Flow Factor (A) | 0.32 | 0.43 | 0.56 | 0.70 | 0.85 | 1.00 | 1.09 | 1.17 | 1.26 | 1.35 | 1.44 |
| PURGE Flow Factor (B) | 0.57 | 0.65 | 0.74 | 0.83 | 0.91 | 1.00 | 1.09 | 1.18 | 1.26 | 1.35 | 1.44 |
VSA Series Drying Process

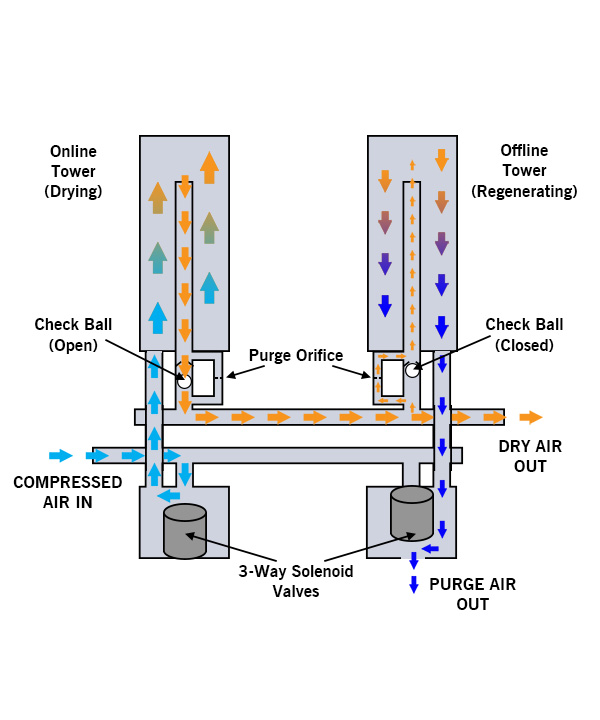

The VSA Series Heatless Regenerative Desiccant Air Dryers employ Pressure Swing Adsorption (PSA) technology. Ordinary compressed inlet air is passed through one Desiccant Tower where the water vapor is removed. The dry air then continues to the Outlet side of the Manifold and on to the application. A portion of the dried air is expanded through an Orifice and directed back through the offline Desiccant tower, purging the accumulated moisture. Every 30 seconds, a Solid-State Timer and two Solenoid Valves reverse the process. The result is a continuous supply of ultra-dry air.
